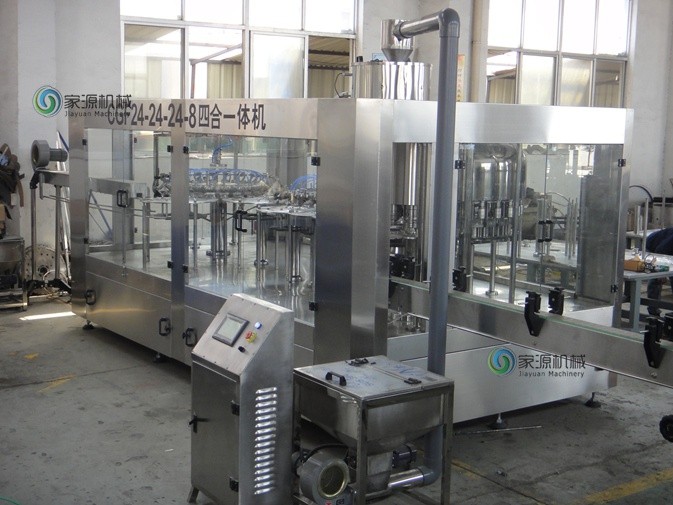

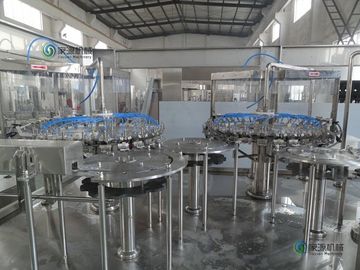

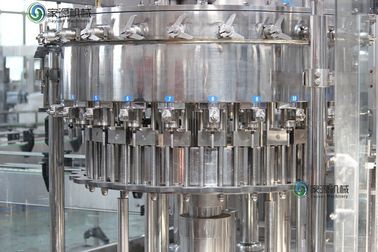

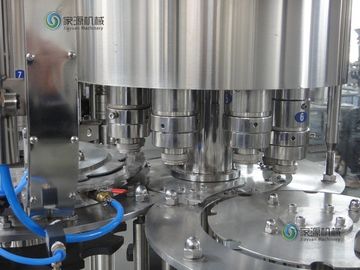

24 Heads Carbonated Soft Drink Filling Machine


PLC 24 Heads Carbonated Soft Drink Filling Machine 8000BPH For Sprite

Quick Detail:


1. Capacity: 8000 BPH@500ml bottle
2. Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
3. CE, ISO certificate
4. Designed power supply: AC/380V/50HZ/3PHASE
5. Fully automatic, no bottle no filling, no cap machine will stop.
6. Customizable

Automatic 8000BPH SUS304/316 4-in-1 DCGF24-24-24-8 Carbonated soft drink filling machine


Description:



The Carbonated soft drink filling machine is used for filling carbonated drink in PET bottle or glass bottle. We can supply the whole line.


Characteristics:


1. The Carbonated soft drink filling machine can carry out washing filling and capping in one machine.
2. The Carbonated soft drink filling machine is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.



Application

This DCGF Carbonated beverage wash-filling-sealing 4-in-1 filling machine used to produce PET bottled carbonated beverages (soda) production, such as

1. Cola
2. Fanta
3. Sprite
4. Soda water, carbonated juice etc.



Specifications:




Competitive Advantage:


1. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
2. The beverage filling machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
3. It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel.
4. Adopt the bottle neck clamping technology, do not need to change the height of the bottle, just change the parts which are relevant to the bottle diameter, such as arc guide plate, poking wheel etc.
5. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
6. Double washing machine can make the bottle be well cleaned.
7. Adopting diaphragm adjust valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
8. Equipped with perfect CIP control loop and program and cleaning devices on the spot.
9. It is not necessary to adjust the input height for exchanging bottle model.
10. Perfect protection system to overload.
11. Air control components are all adopted with SMC products made in Japan.
