Mesin Pembotolan Bir Skala Kecil Otomatis

Mesin Pembotolan Bir Skala Kecil Otomatis

    • Automatic Small Scale Beer Bottling Machine
    • Automatic Small Scale Beer Bottling Machine
    • Automatic Small Scale Beer Bottling Machine
    • Automatic Small Scale Beer Bottling Machine
    • Automatic Small Scale Beer Bottling Machine
  • Automatic Small Scale Beer Bottling Machine

    Detail produk:

    Place of Origin: Jiangsu, China (Mainland)
    Nama merek: Jiayuan
    Sertifikasi: CE ISO SGS
    Model Number: QS-12 DY-12 YG-6

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1 Set/Sets
    Harga: $6,000-20,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Kapasitas: 2.000 botol per jam Dimension(L*W*H): 1100 * 1050 * 1800mm
    Kekuasaan: 1.1kW Botol Jenis: Botol Kaca Plastik PET
    Mengisi bahan: Cairan Gas Fungsi: Capping Mengisi Botol
    warna: Abu-abu Silver Berat badan: 1600kg
    Menyoroti:

    mesin pembotolan kaca

    ,

    pengisi botol kaca



    Automatic small scale beer bottling machine



    glass bottle filling machine SS304


    Specifications:
    Automatic small scale beer bottling machine glass bottle filling machine SS304
    1.Model:QS-12 DY-12 YG-6
    2.beer filling machine
    3.beer bottling machine,beer bottle filling machine,
    4.glass bottle filling machine,automatic filling machine

    Introduction:
    Automatic small scale beer bottling machine glass bottle filling machine SS304

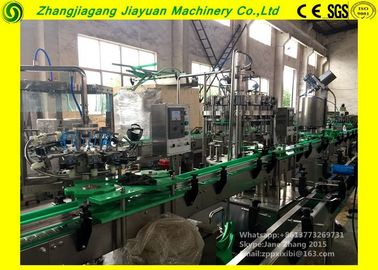

    QS-12 DY-12 YG-6 machine includes QS automatic washer,DY balanced pressure filler,FXZ cap turning machine,SSJ carrying machine ect.The key parts are made of stainless steel,with the features of reasonable stucture,advanced technology,easy in operation,widely used,etc,it's the ideal machine for middle and small beverage factory

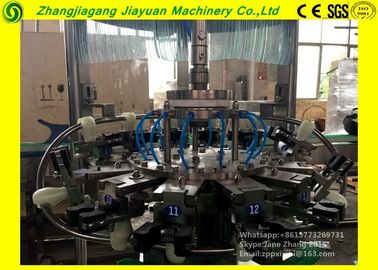

    QS-12 Rotary Bottle Washer
    1.Adopt 1990s' technology of West Geramny SEN corp,also combining the condition of our country.
    2.It has high efficiency and good washing result by adopting continuously spraying and washing method.
    3.It is mainly used to clean the plastic glass bottles of beverage.
    Mesin Pembotolan Bir Skala Kecil Otomatis 0

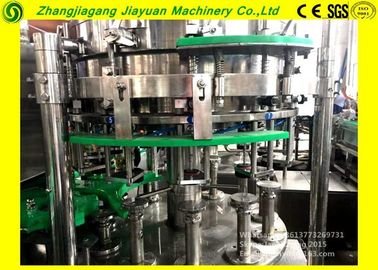

    DY-12 Balanced Pressure Filller
    1.The filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and with international advanced level.
    2.It is mainly usde for filling gas-containing drinks,such as aerated water,cola,sparkling wine,fruit tea and so on,It is advanced in construction,steadly in performance,safe in operation,easy in maintenance high in production effciency,and the speed can be regulated infinitively.
    3.The filler is the ideal choice for drink factories of small and middle type.
    Mesin Pembotolan Bir Skala Kecil Otomatis 1

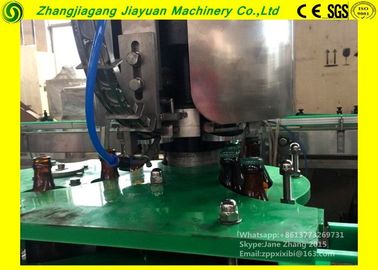

    YG-6 Automatic Capper
    The capper is the automatic capping and sealing equipment for bottled aerated water,sparkling wine,juice,health drink,soy sauce,vinegar and wine,production enterprises.
    Mesin Pembotolan Bir Skala Kecil Otomatis 2

    Main technical parameter

    Model QS-12 DY-12 YG-6
    Production capacity 2000BPH
    Number of washing head 12
    Number of filling head 12
    Number of capping head 6
    Diameter of bottle 62-100mm
    Height of bottle 160-320mm
    Bottle volume 250,375,500,625ml
    Bottle/can type glass bottle,PVC bottle,POP-top can
    Filling pressure 0.2-0.3Mpa
    Filling temperature 2-6.C
    Cap type crown type
    Power 1.5kw


    Other related parts

    Conveyor
    Mesin Pembotolan Bir Skala Kecil Otomatis 3

    Floating ball(used for liquid level testing)
    Mesin Pembotolan Bir Skala Kecil Otomatis 4

    Washing and filling part on-off controller
    Mesin Pembotolan Bir Skala Kecil Otomatis 5Mesin Pembotolan Bir Skala Kecil Otomatis 6

    Our two workshop

    Mesin Pembotolan Bir Skala Kecil Otomatis 7



    Packing&Shipping

    Mesin Pembotolan Bir Skala Kecil Otomatis 8



    Payment

    30% deposit against the contract by T/T should be paid before the order;

    70% balance should be paid off by T/T after inspection before delivery;

    Delivery time

    30 days after received the down payment;

    Training

    Against the requests of the Buyer, the Seller’s technician could train the Buyer’s operators in the Buyer’s factory in the periods of installing & adjusting;



    Company Information

    Mesin Pembotolan Bir Skala Kecil Otomatis 9
    Jiayuan company was established in1997,and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry.we have such as CE,ISO etc certification.
    We can provide our customer with the machines as following:
    1.Water bottle filling machine/whole production line
    2.Juice filling machine/whole production line
    3.Carbonated drink filling machine/whole production line
    4.Small scale beverage filling machine/production line(Such as water,juice,soda water,cola,beer...)
    5.1-5 gallon water barrel filling machine/production line
    6.Glass bottle filling machine
    7.Can filling machine
    8.Water treatment system/water purifying machines
    9.Juice or carboanted drink mixing system.
    10.End-of-line packaging machines

    If you're satisfied with our machines,and want to get the detailed informations,please leave the information of your bottle size,your capacity,then contact me by following ways:
    Mesin Pembotolan Bir Skala Kecil Otomatis 10
